Suitable For

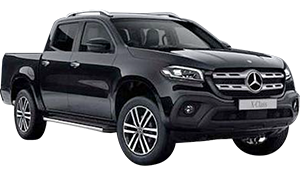

A vehicle image representing the page's contents

Type:

X-Class

Model:

X250, X350 (2018 on)

Variant:

Detail:

4x4

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Due to the Restricted Suspension Geometry, a Maximum of 40mm Lift is Achievable in the Front of this Vehicle.

2.3L Turbo Diesel X 250

Linear Rate
Standard Height
Heavy Duty
Up to 80Kg

Part Number

C45-254

Availability

Linear Rate
Raised Height (35mm Lift)
Up to 50Kg

Part Number

C45-278

Availability

Linear Rate
Raised Height (35mm Lift)
60-90Kg

Part Number

C45-280

Availability

3.0L Turbo Diesel X 350

Linear Rate
Raised Height (30mm Lift)
Up to 35Kg

Part Number

C45-484

Availability

Linear Rate
Raised Height (35mm Lift)
60-90Kg

Part Number

C45-486

Availability

Shock Absorber

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 106mm / 4.17”

Part Number

IMS45-50648

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 106mm / 4.17”

Part Number

MRA45-A648

Availability

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-35mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC45-004

Availability

Rear

Coil Spring

Remove OE Coil Spring Insulator and Fit to Dobinsons Coil Spring

Variable Rate
Standard Height
50-150Kg Constant Load

Part Number

C45-457V

Availability

Variable Rate
Standard Height
Heavy Duty
150-300Kg Constant Load

Part Number

C45-459V

Availability

Variable Rate
Raised Height (20mm Lift)
No Load

Part Number

C45-457V

Availability

Variable Rate
Raised Height (40mm Lift)
Up to 80Kg Constant Load
Comfort Option

Part Number

C45-441V

Availability

Variable Rate
Raised Height (40mm Lift)
250-300Kg Constant Load

Part Number

C45-443V

Availability

Variable Rate
Raised Height (40mm Lift)
450-550Kg Constant Load

Part Number

C45-445V

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS45-646

Availability

IFP Monotube Shock (IMS)

Part Number

IMS45-50646

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA45-A653

Availability

Control Arm

Designed For More Articulation

Upper Control Arm

Heavy Duty Rear Upper
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA45-541K

Availability

Panhard Rod

Adjustable Panhard Rod

Part Number

PR45-1425

Availability

Sway Bar Extension & Brake Extension Bracket

Part Number

SE45-523K

Availability
