Suitable For

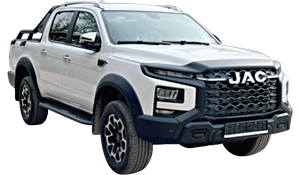

A vehicle image representing the page's contents

Type:

T9

Model:

Hunter (2024 on)

Variant:

2" Lift

Detail:

4x4, 50mm Lift (2")

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Linear Rate
Standard Height
50-80Kg

Part Number

C59-718

Availability

Linear Rate
Raised Height (45mm Lift)
Comfort Option
Up to 20Kg

Part Number

C59-302

Availability

Linear Rate
Raised Height (45mm Lift)
Heavy Duty
Up to 60Kg

Part Number

C59-350

Availability

Linear Rate
Raised Height (45mm Lift)
Heavy Duty
70-90Kg

Part Number

C59-352

Availability

Linear Rate
Raised Height (45mm Lift)
Extra Heavy Duty
100-120Kg

Part Number

C59-736

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-228

Availability

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 226mm / 8.89"

Part Number

IMS59-50700

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 226mm / 8.89"

Part Number

MRA59-A228

Availability

X - Centre of Eye to Spring Seat

Includes Vehicle Specific Bracket.
If Vehicle Specific Bracket Does Not Work, Use RM80-005 Universal Bracket

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-30mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC59-001

Availability

Strut Spacer

5mm Trim Packer
(10mm Lift)

Part Number

PS59-4030

Availability

Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers

Sway Bar

Heavy Duty Sway Bar

Part Number

SB59-1936

Availability

Rear

Leaf Spring

4 + 3 Leaves
(25mm Lift)
Heavy Duty
Up to 280Kg Constant Load

Part Number

L59-039-R

Availability

3 + 1 Leaves (Parabolic)
Raised Height (50mm Lift)
Comfort Option
Up to 100Kg Constant Load

Part Number

L59-047-RP

Availability

3 + 3 Leaves
Raised Height (50mm Lift)
Medium Duty
Up to 100Kg Constant Load

Part Number

L59-040-R

Availability

When Using L59-040-R, The Longer Leaf On The 2nd Stage May Be Turned Upside Down To Give A Softer Ride.
This Will Reduce Load Carrying Capacity

4 + 3 Leaves
Raised Height (50mm Lift)
Heavy Duty
280Kg Constant Load

Part Number

L59-041-R

Availability

When Using L59-041-R, The Longer Leaf On The 2nd Stage May Be Turned Upside Down To Give A Softer Ride.
This Will Reduce Load Carrying Capacity

5 + 3 Leaves
Raised Height (50mm Lift)
Super Heavy Duty
450Kg Constant Load

Part Number

L59-042-R

Availability

Shock Absorber

Twin Tube Nitro-Gas
Comfort Option
Medium Load

Part Number

GS59-649

Availability

Twin Tube Nitro-Gas
Extra Heavy Duty
(Big Bore)
350Kg Constant Load

Part Number

GS59-651

Availability

IFP Monotube Shock (IMS)

Part Number

IMS59-50649

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A649

Availability

Spring & Shackle Bush Kit

Kit Contains:
2 x PB59-1503 (F)
4 x PB59-1501 (R)
4 x PB59-1502 (C)

Part Number

PB59-1094K

Availability

U-Bolt Kit

Suits L59-039-R
Kit Contains:
2 x UB59-453-2

Part Number

UB59-453-2K

Availability

Suits L59-040-R
Kit Contains:
2 x UB59-453-2

Part Number

UB59-453-2K

Availability

Suits L59-041-R
Kit Contains:
2 x UB59-453-2

Part Number

UB59-453-2K

Availability

Suits L59-042-R
Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Availability

Suits L59-047-RP
Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Availability

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK59-053

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060

Availability

Brake Adjuster

Recommended when Raising Vehicle
Not Required for Vehicles with ABS Brake System

Part Number

BA59-002

Availability
